Boost Your Wireless Network
Tired of Wi-Fi ’’dead zone’’? TP-Link’s range extender connects to your router wirelessly, strengthening and expanding its signal into areas it can’t on its own. The device also reduces signal interference to ensure reliable Wi-Fi coverage throughout your home or office.

Easy Setup and
Flexible Placement
Press the WPS button on your router and the Range Extender button on your 850RE within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply unplug and plug the TL-WA850RE back in a location for the best signal quality and coverage in your house, without needing to configure the extender again.

Ethernet Bridge
The TL-WA850RE’s single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray® players, gaming consoles, DVRs and Internet TVs. At the same time, the device can share the wireless network as well.

Smart Signal Indicator Light
5 signal lights show the strength of signal that TL-WA850RE receives from the existing router, which can help to find the right location to place the range extender.
It’s recommended that you choose a location where at least 3 signal light blue in order to guarantee a good performance.

Tether App for
Easy Use
Use any mobile device to easily access and manage various features, including the LED Control function’s Night Mode, which allows you to enjoy a more peaceful night’s sleep.

HARDWARE FEATURES
• Interface: 1 * 10/100M Ethernet Port (RJ45)
• Button: RE (Range Extender) Button, Reset Button
• Power Supply: Internal 2000mAh Rechargeable Battery
• Power Consumption: About 3W
• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
• Antenna: 2 * internal

WIRELESS FEATURES
• Signal Rate: 11n: Up to 300Mbps (dynamic), 11g: Up to 54Mbps (dynamic), 11b: Up to 11Mbps (dynamic)
• Reception Sensitivity: 270M: -68dBm@10% PER, 130M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER, 11M: -85dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8% PER
• Frequency: 2.4~2.4835GHz
• Transmit Power: < 20 dBm (EIRP)
• Wireless Modes: Range Extender/Access Point
• Wireless Functions: WMM (Wi-Fi Multimedia), Wireless MAC Address Filtering, Wireless Statistic, Domain Login Function
• Wireless Security: 64/128/152-bit WEP, WPA-PSK / WPA2-PSK

OTHERS
• Certification: CE, RoHS
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F), Storage Temperature: -40°C~70°C (-40°F~158°F), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

Package Contents

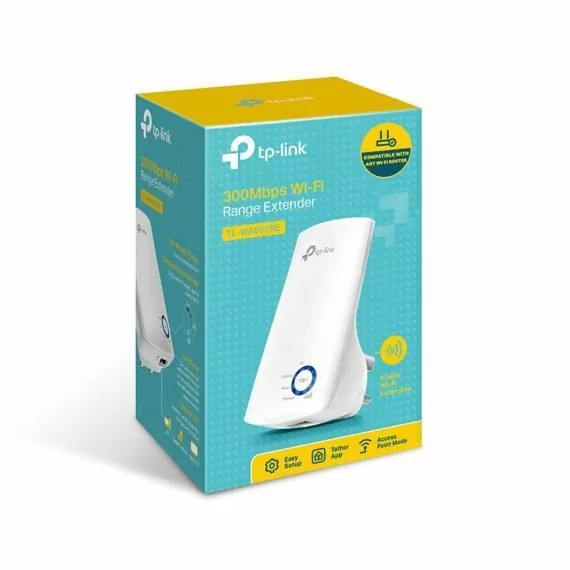

• 300Mbps Universal Wi-Fi Range Extender TL-WA850RE
• Quick Installation Guide
